· Fast Target Corrections: VIS-FMIL Etched Glass Reticle with Christmas-Tree Design Enables Fast Follow-Up and BDC Ranging
· Precise Adjustment Control: 1/10 MIL Clicks with 13 MIL Range and Side Focus from 20 Yards Offer Versatile Shooting Options
· Wide and Clear Viewing: 50mm Large Lens with Fully Multi-Coated Glass Delivers Edge-to-Edge Clarity and Clear Imaging
· Reliable Zero Retention: Turret Lock Prevents Unwanted Adjustments, Keeping Your Settings Accurate

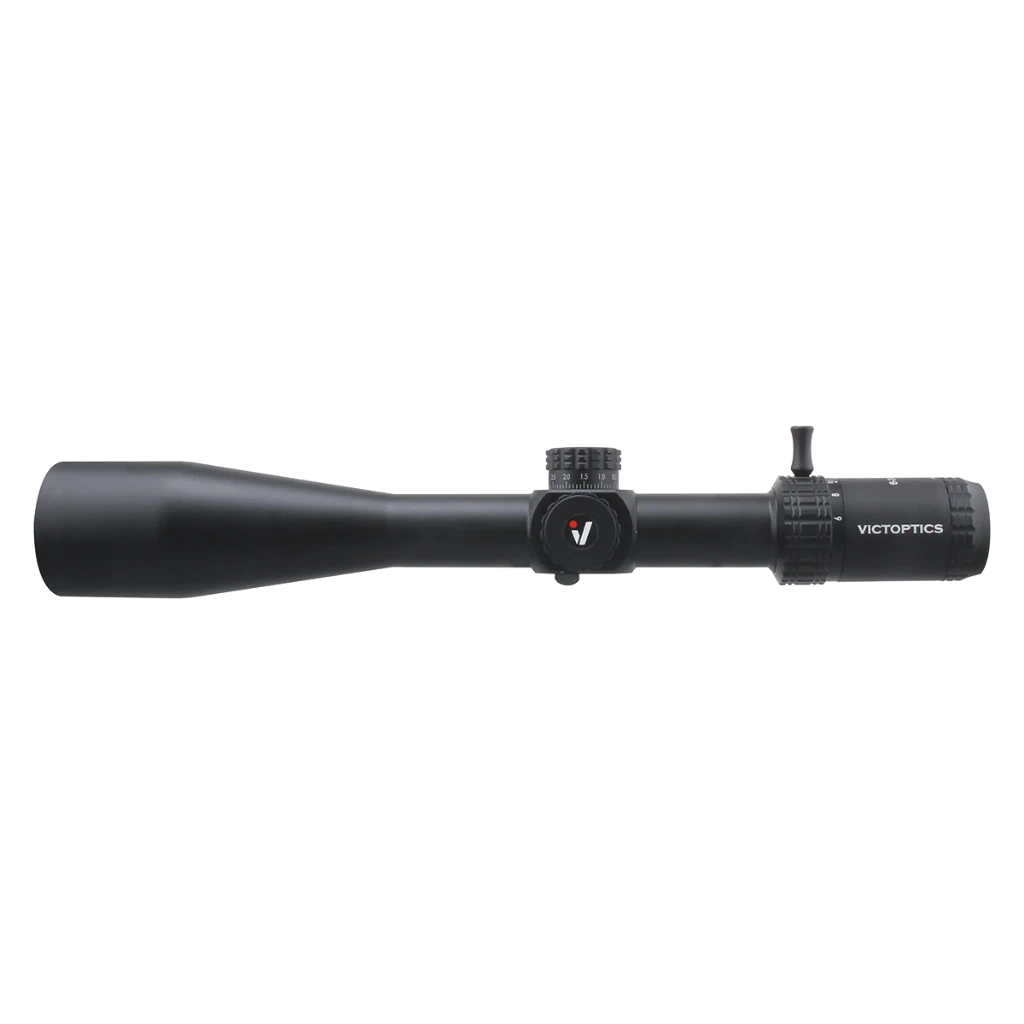

· Comfortable Handling: Power Ring Lever, Sunshade, and Side Wheel for Rapid Zoom, Glare Reduction, and Enhanced Ergonomics
Specification
Magnification: 6-24x
Objective Lens: 50mm
Ocular Lens Dia: 35mm / 1.4 inch
Ocular Length: 58mm / 2.3 inch
Exit Pupil: 8.3-2.1mm
Tube Diameter: 30mm
Length: 375mm / 14.8''
Weight (net): 555g / 19.6oz
Eye Relief: 96mm / 3.8 inch
Field of View (@100yds): 21.2-5.3 feet
Optics Coating: Fully-multi coated
Reticle: VIS-FMIL etched glass reticle

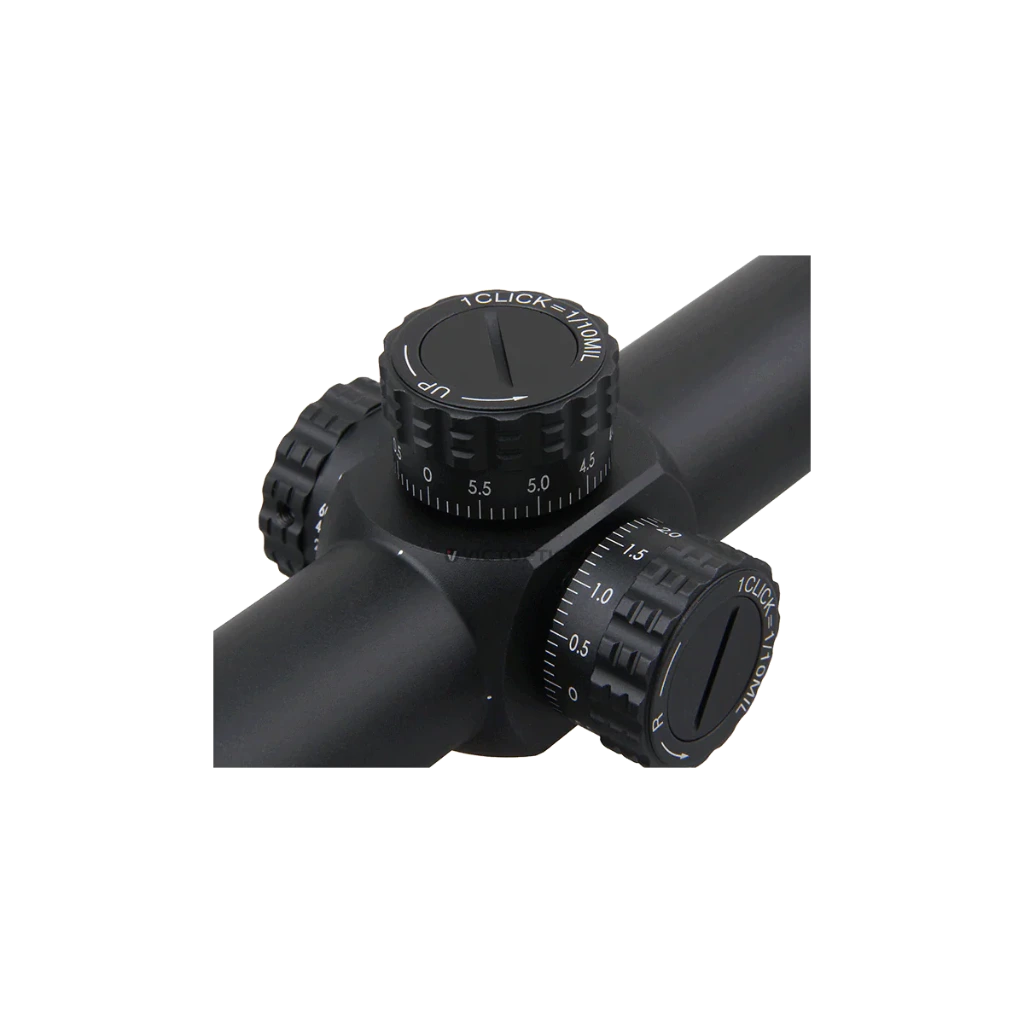

Click Value: 1/10MIL
Evaluation Range: 13MIL
Windage Range: 13MIL
Parallax Adjustment: 20 Yds to infinite
Finish: Black matte
Illumination: N/A
Side focus knob marked 20, 25, 50, 75, 100, 200, 400, 600 yards to infinite
Distance between objective lens part and middle turret: 61mm (2.4 inch)
Length of middle turret part: 32mm (1.3 inch)
Distance between middle turret parts to power ring: 55mm (2.1 inch)
Shock tested to 750g, water resistant and fully nitrogen purged

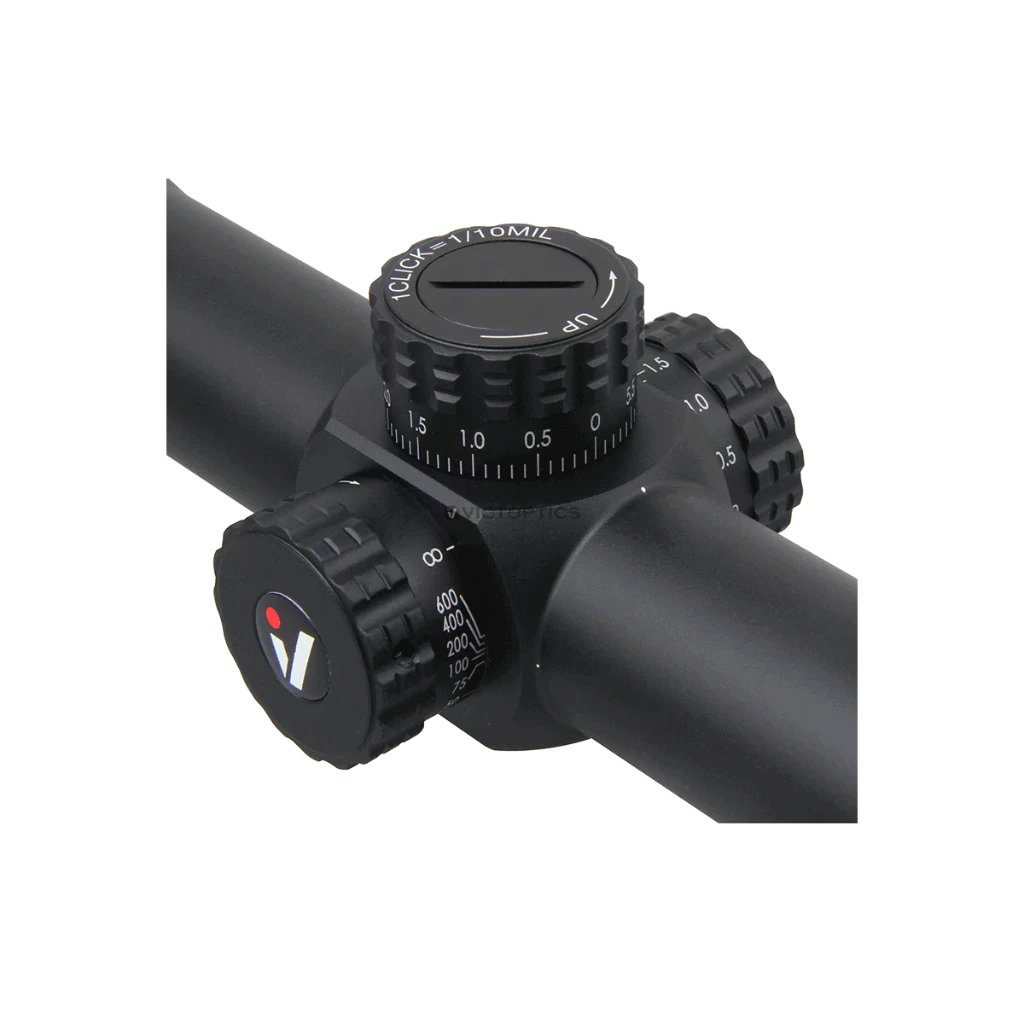

Turret lock system. Pull to adjust, press down to lock.
High quality 6061 T6 aircraft grade aluminum
Diopter compensation from fast-focus eyepiece -2 to +2

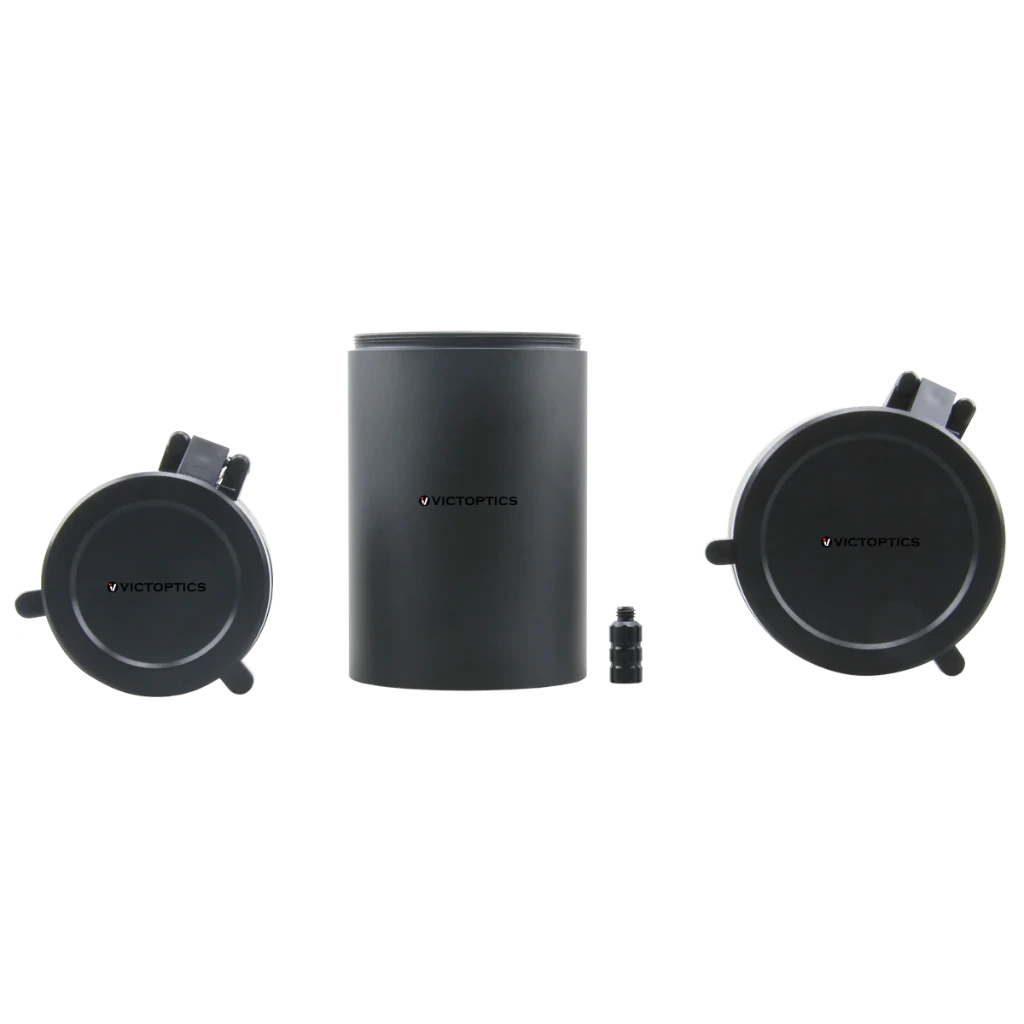

Including items: 30mm weaver rings (default), power ring lever mount,
3 inch sunshade, cleaning cloth, instruction, lens flip-up caps and
packed in nice retail box
